Update Android VPN Profile Configuration

To establish a secure connection between the Skyhigh Mobile Cloud Security (SMCS) application and the Skyhigh SSE Cloud, update the Android VPN profile configuration in the MDM (Intune or AirWatch) platform by performing the following steps.

NOTE: The SMCS application is a Managed Client, and Skyhigh does not support configuration without MDM solution.

Configuration in Intune

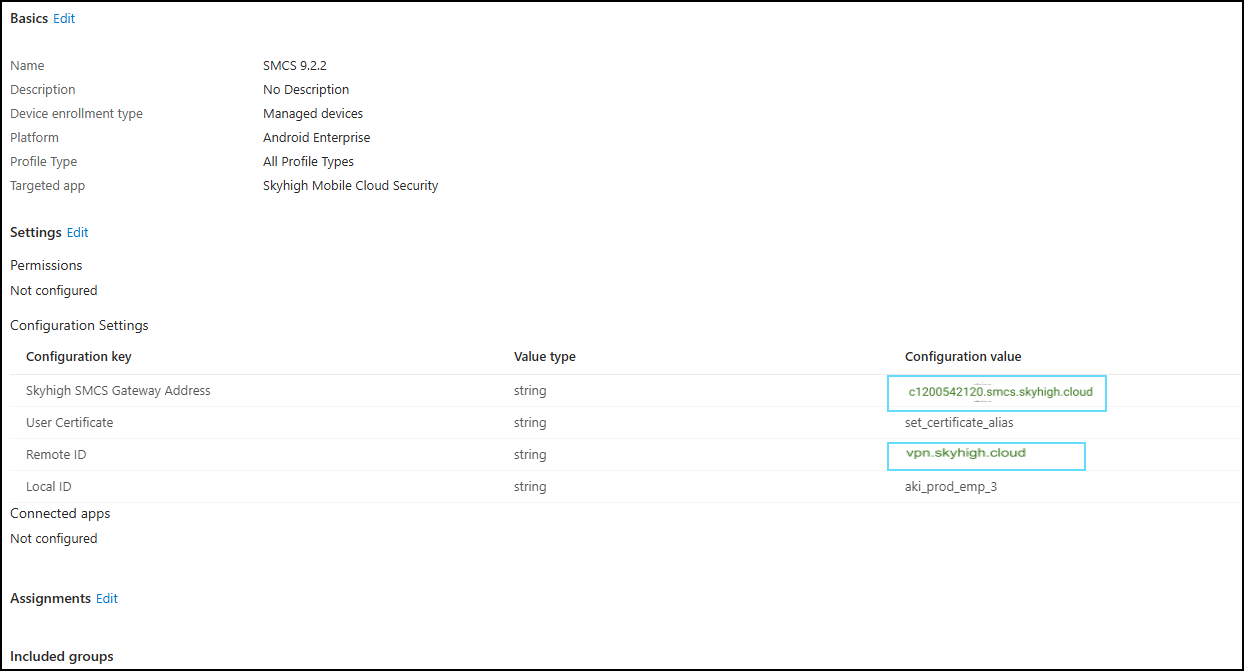

Current Configuration
Configuration Parameter Current Value
Skyhigh SMCS Gateway Address c1200542120.smcs.skyhigh.cloud
Remote ID vpn.skyhigh.cloud


Steps to Update Configuration in Intune
  1. Log in to Microsoft Intune as an administartor.

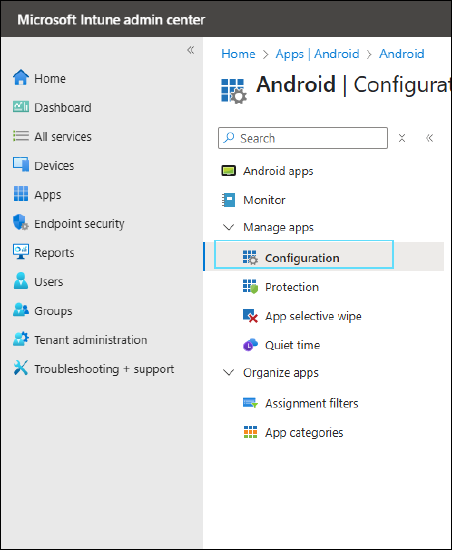

  2. Navigate to Apps > Android > Configuration.

  3. Select the existing profile where changes are required.

  4. On the Profile page, select Properties, and click Edit .
  5. In the Edit app configuration policy page, modify the following:
  • Skyhigh SMCS Gateway Address: Update the configuration value c1200542120.smcs.skyhigh.cloud withc1200542120.mobile.skyhigh.cloud
  • Remote ID: Update the configuration value vpn.skyhigh.cloud with mobile.skyhigh.cloud

  1. Click Review + save.
  2. Click Save to apply the updated configuration.
Updated Configuration

Ensure the configuration parameter values are updated as per the following table.

Configuration Parameter Updated Value
Skyhigh SMCS Gateway Address c1200542120.mobile.skyhigh.cloud
Remote ID mobile.skyhigh.cloud


NOTE: The remaining parameters are unchanged. For more details, see Configure Microsoft Intune MDM for Android

Configure in AirWatch (Workspace One)
Current Configuration
Configuration Parameter Current Value
Skyhigh SMCS Gateway Address c1200542120.smcs.skyhigh.cloud
Remote ID vpn.skyhigh.cloud


Steps to Update Configuration in AirWatch
  1. Log in to AirWatch as an administrator.
  2. Navigate to RESOURCES > Native Apps > Public.

  3. Select Skyhigh Mobile Cloud Security from the list.
  4. Click the Assignments tab.
  5. Select the profile that needs to be updated.
    Example: Sahil_Skyhigh_Setting


  6. Under the Application Configuration section, click Edit at the bottom-right corner.

  7. Update the values as specified in the Updated Configuration section.
  8. Click Save.
  9. Click Publish on the pop-up window to apply changes.
Updated Configuration

Ensure the configuration parameter values are updated as per the following table.

Configuration Parameter Updated Value
Skyhigh SMCS Gateway Address c1200542120.mobile.skyhigh.cloud
Remote ID mobile.skyhigh.cloud


NOTE: The remaining parameters are unchanged. For more details, see Configure Microsoft Intune MDM for Android
