Install SWG 13.0 on VMware (ESXi)

  1. Last updated
  2. Save as PDF
Limited Availability: Upgrade to SWG 13.0 for enhanced stability and security. Contact Skyhigh Support for assistance.

This topic outlines details about setting up a Virtual Machine on ESXi for SWG 13.0, with specifications such as supported ESXi versions, Guest OS, and Network Adapters.

ESXi Specifications
ESXi Version Guest OS Boot Option for New Installation Supported Network Adapters
ESXi 8 Other 5.x Linux (64-bit) EFI without secure boot
  • VMXNet 3
  • E1000e

NOTE:

  • For the initial migration from SWG 12.x or earlier to SWG 13.0, use Virtual Media to mount the SWG 13.0 ISO through the Remote Management Module (RMM) virtual CDROM. Alternatively, use an external USB drive prepared with the SWG 13.0 installation image.
  • Do not use the internal recovery media (edisk) during migration. Use the edisk only as a recovery tool after you successfully complete the initial SWG 13.0 installation.
  • Refer to the Changes in Network Management and Supported SSL Versions sections before proceeding with the configuration.
  • When migrating Secure Web Gateway (SWG) from 12.x or earlier to 13.0, refer to the Backup and Restore section before reimaging the SWG using the SWG 13.0 ISO.
Install a VM on ESXi

Installing a new virtual machine (VM) on VMware ESXi is a simple process that allows you to run multiple operating systems on a single physical server.

To Install a VM on ESXi:

  1. Log in to the ESXi Host.
  2. From the Navigator menu, right-click Virtual Machines and select Create/Register VM.
    The New virtual machine window opens.
  3. Under the Select creation type tab, select Create a new virtual machine.


  4. Click NEXT.

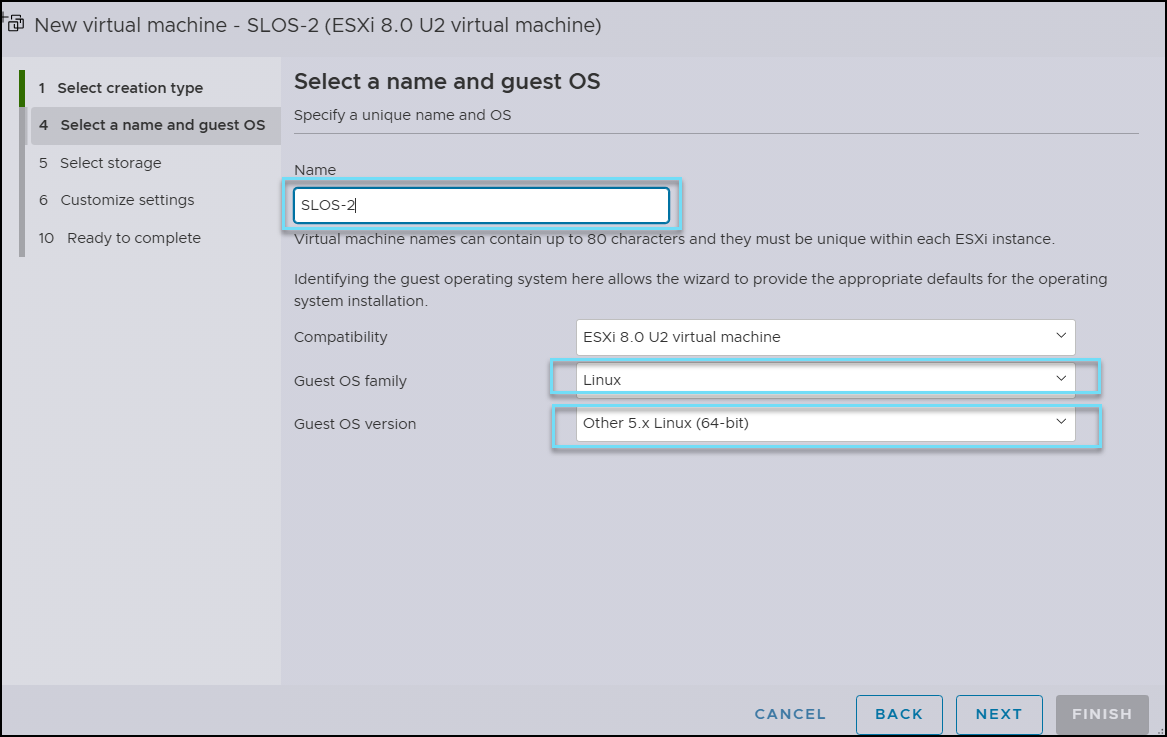

  5. Under the Select a name and guest OS tab, enter the following details:
    1. Name. Add a preferred name for the virtual machine.
    2. Guest OS family. Select Linux from the drop-down.
    3. Guest OS version. Select Other 5.x Linux (64-bit) or Other Linux 5.x or Later (64-bit) from the drop-down.


  6. Click NEXT.
  7. Under the Select storage > Standard tab, select the applicable datastore.


  8. Click NEXT.
  9. Under the Customize settings > Virtual Hardware tab, enter the applicable details by referring Physical and Virtual Appliance Requirements.

NOTE: Make sure the Datastore ISO file is selected as CD/DVD Drive 1 for seamless installation.​​


  1. Under the Customize settings > VM Options tab:
    1. In the Boot Options menu, from the Firmware drop-down, select EFI.
    2. In the Enable UEFI secure boot field, uncheck the Whether or not to enable UEFI secure boot for this VM box.


  2. Click SAVE.
  3. Under the Ready to complete tab, review the details and click FINISH.
    The virtual machine is created.

TIP: To install SWG on a VM, refer Set Up a Virtual Appliance.
