The connection settings enable you to configure ports for redirecting web traffic to the upstream Skyhigh Secure Web Gateway.

NOTE: The rules in the policy are applied to the redirection ports only.

To configure connection settings:

  1. Navigate to Policy > Skyhigh Client > Configuration.
  2. From the Settings list, select Client Profile.
  3. Select a profile from the list of profiles.
    The Connection Settings tab displays by default.

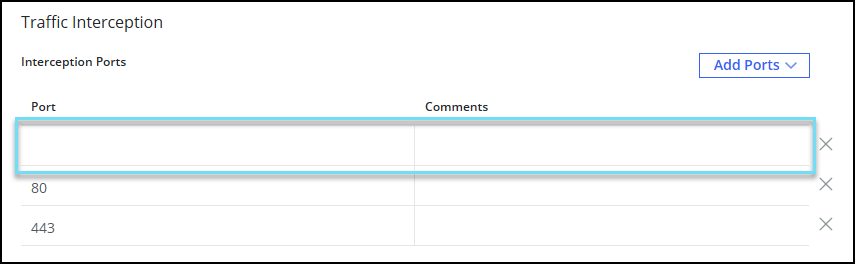

  1. To add an interception port:

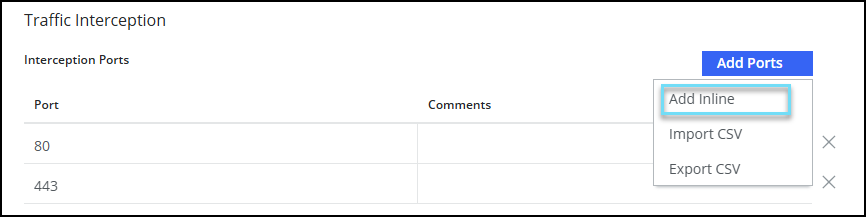

    1. From the Add Ports drop-down, select Add Inline:

      1. Port. Specify the port to redirect traffic to a proxy server.
      2. Comments. Enter applicable information.


  2. To import port numbers from the CSV file:
    1. From the Add Ports drop-down, select Import CSV.


    2. Navigate to the folder containing the port list, select the file, and click Open.
      The ports are added to the list.
  3. To export configured port numbers to the CSV file:
    1. From the Add Port drop-down, select Export CSV.

      The configured domain list is downloaded in the CSV file format.

For Traffic on Non-Redirected Ports

  1. To channelize traffic on a non-redirected port, select one of the following options:

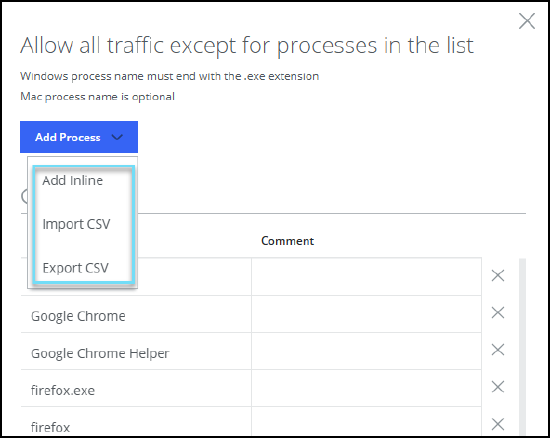

    • Allow all traffic except for processes in the list

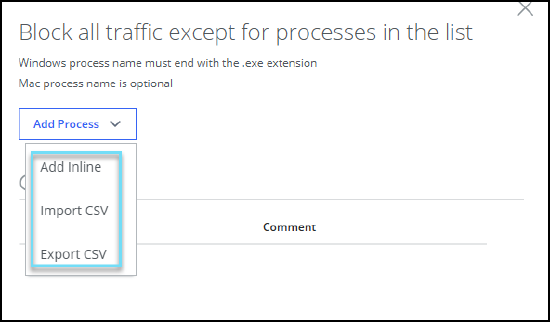

    • Block all traffic except for processes in the list


  2. Click the selected option and select one of the following from the Add Process drop-down:
    • Add Inline. Add a process to the list
    • Import CSV. Import a process list
    • Export CSV. Export the process list


Local Proxy Settings

For handling the intercepted web traffic from local applications, Skyhigh Client Proxy used to internally expose a listener port on the loopback interface, which was dynamic in nature. With the new Skyhigh Client, this local proxy port is made static and can be configured through a Client Profile.

  • Local Proxy Port. 8080 is set by default.

NOTE:

  • Skyhigh Client will use this TCP Port by default for internally handling intercepted web traffic. A service restart is required if the port number is changed.
  • For details about port behavior during installation and system restart, see Install Skyhigh Client on Windows.
  • Enable local proxy. Select this checkbox to use the local proxy.

    When enabled, the Enable Local Proxy option allows other applications running on the endpoint to configure the local proxy to be an explicit proxy as part of the respective application-specific proxy configuration settings. For example: browsers


NOTE: When the local proxy is enabled, Global Bypass and Global Block settings do not apply. Only custom bypass or block rules under the Web section are applied.

Configure Custom Local Proxy Ports During Skyhigh Client Installation

Administrators can manually assign a dedicated local proxy port for the mwgproxy service during client installation. This command-line optimization provides explicit configuration control for environments with strict network port requirements or to resolve existing local software conflicts.

Path: Skyhigh Client > Configure Skyhigh Client Settings > Client Profile > Connection Settings > Local Proxy Settings > Configure Custom Local Proxy Ports During Skyhigh Client Installation.

For more information about client installation, see Install the Skyhigh Client on Windows.

Command-Line Deployment

To deploy this configuration, run the MSI installer from a command prompt using administrative privileges and append the LOCALPROXYPORT property.

  • Command Syntax: msiexec /i ScpInstaller.x64.msi LOCALPROXYPORT=<PortNumber>
  • Configuration Example: To install the client and explicitly allocate local proxy port 9090, execute:
    msiexec /i ScpInstaller.x64.msi LOCALPROXYPORT=9090

Operational and Lifecycle Behavior

  • Fresh Installation Checks: The installer strictly validates port availability before modifying the endpoint. If the specified port or its mandatory 20-port range is occupied, the installation terminates before removing the previous software version to prevent a broken operational state.
  • Service Startup Safeguards: If an external service occupies the designated port when the Skyhigh Client service starts up, traffic redirection fails and the client drops all traffic to guarantee network security.
  • Upgrading from Client Proxy 4.x to 5.x: The setup framework applies standard fresh installation logic to establish the primary port.
  • Upgrading from Skyhigh Client 5.x to 5.x: The installer scans the local proxyconfig.json file and system registry caches to discover the port used by the active service. If a specified fixed port matches the active port, it reuses it immediately. If you define a new fixed port, the installer verifies its availability before applying the switch.
  • Fallback Default Behavior: If you omit the LOCALPROXYPORT property during command-line installation, the setup process automatically attempts to reuse a previously configured port or falls back to its default sequential port search starting at port 8080.

Note: Skyhigh Client version 5.1.0.x and later supports these port validation and persistence enhancements. Prior to deployment, verify that local firewalls do not block the target port and that no other endpoint applications occupy it.

On-Premise Bypass

  1. To add an On-Premise IP address:
    1. In the On-Premise IP Addresses section:
      1. From the Add Address drop-down, select Add Inline:
        • Hostname/IP Address. Enter the hostname or IP address of an endpoint.
        • Port. Enter the port number.
      2. From the Add Address drop-down, select Import CSV.
        The CSV file is imported.
      3. From the Add Address drop-down, select Export CSV
        The CSV file is exported.

  2. To add a Corporate VPN Address Space:
    1. In the Corporate VPN Address Space section:
      1. From the Add Address drop-down, select Add Inline:
        • Hostname/IP Address. Enter the hostname or IP address of an endpoint.
        • Port. Enter the port number.
      2. From the Add Address drop-down, select Import CSV.
        The CSV file is imported.
      3. From the Add Address drop-down, select Export CSV.
        The CSV file is exported.

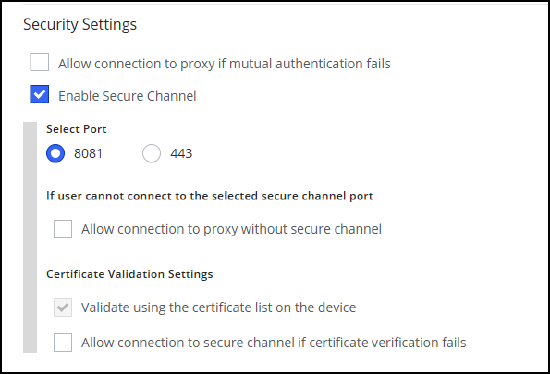

Security Settings

  • Allow connection to proxy if mutual authentication fails. Select this checkbox to allow connection to the proxy when mutual authentication fails.

NOTE:

When mutual authentication fails, traffic is not forwarded to a remote gateway. The mutual authentication option allows the Client and Skyhigh gateway to verify each other's identity, ensuring the Client connects only to a legitimate gateway.

  • Enable Secure Channel. Select this checkbox to establish a secure connection between the Skyhigh Client and the Skyhigh Security WGCS. When selected, the software validates the cloud proxy certificate against the device certificate store and establishes a secure connection.
    • Select Port. Select one of the following ports for establishing secure connection
      • 8081
      • 443
    • If user cannot connect to the selected secure channel port
      • Allow Connection without Secure Channel. Select this checkbox to allow the connection through the configured proxy port without establishing a secure connection between the Skyhigh Client and the Skyhigh Security WGCS.
    • Certificate Validation Settings
      • Validate using the certificate list on the device. By default, this checkbox is selected. This ensures device certificate validation occurs continuously.
      • Allow connection to secure channel if certificate verification fails. Select this checkbox to allow traffic to the cloud proxy server when the certificate verification fails.


Cloud Firewall Settings

When the Cloud Firewall setting is enabled in the Client profile, it enforces the relevant Cloud Firewall rules under the Network section of the mapped policy.

The Cloud Firewall tab displays details and status of cloud firewall configurations.

  • Secure - Connected
    The Skyhigh Client displays the Secure status when the Cloud Firewall tunnel actively protects your network traffic and maintains a verified connection to the Skyhigh Security cloud infrastructure.
  • Secure-Awaiting Network Activity
    The Awaiting network activity status displays when no matching traffic has been generated and the tunnel has not yet attempted to establish. Once matching traffic is initiated, the status transitions to the Connected state.

  • Error-Reconnecting
    The Skyhigh Client displays the Error - Reconnecting status during temporary disruptions and automatically restores the Cloud Firewall tunnel once you send the first UDP packet.



NOTE:

  • If the Cloud Firewall sub-tab does not display the Connected state, then the More Stats section under the Private Access sub-tab will display empty.
  • When you enable Cloud Firewall, the Client sends all IP traffic to the Cloud gateway by default. However, sending system traffic to the Cloud gateway is not advised because it may produce undesirable effects like network connectivity failures. Therefore, Skyhigh recommends that you bypass such traffic based on your network configuration needs.

           Examples:

  • Traffic from windows processes
    • system.exe, alg.exe, dns.exe, lsass.exe, services.exe, spoolsv.exe, svchost.exe, userinit.exe, winlogon.exe
  • ICMP (protocol number 0) Traffic
  • UDP Traffic on Port
    • 53 (DNS)
    • 123 (Network Time Protocol (NTP))
    • 67 (Dynamic Host Configuration Protocol (DHCP) servers)
    • 500 (Internet Key Exchange (IKE))
    • 389, 636, 3268-3269 (Lightweight Directory Access Protocol (LDAP))
    • 445 (SMB)
  • TCP Traffic on Port
    • 389, 636, 3268-3269 (Lightweight Directory Access Protocol (LDAP))
    • 445 (SMB)
  • IPSEC ESP (protocol number 50) Traffic
  • GRE (protocol number 47) Traffic

On the SSE UI:

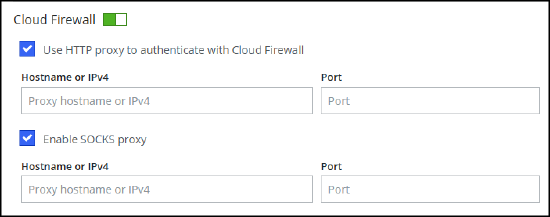

  • Use HTTP proxy to authenticate with Cloud Firewall. Select this checkbox to enable the Skyhigh Client to authenticate with Cloud Firewall over TLS when using a corporate web proxy. But, when a user is connected outside the corporate network, a direct connection to the Internet is used to authenticate with Cloud Firewall:
    • Hostname or IPv4. Enter the hostname of the corporate web proxy.
    • Port. Enter the port number.
  • Enable SOCKS proxy. Select this checkbox to ensure that your on-premise SWG acts as a SOCKS proxy and relays the tunneled traffic to the Cloud Firewall:
    • Hostname or IPv4. Enter the hostname of the on-premise SWG.
    • Port. Enter the port number.


Enter a value that ranges from 5 minutes to 1440 minutes to direct Skyhigh Client to check the policy update according to the specified interval.


  1. Click Save.
